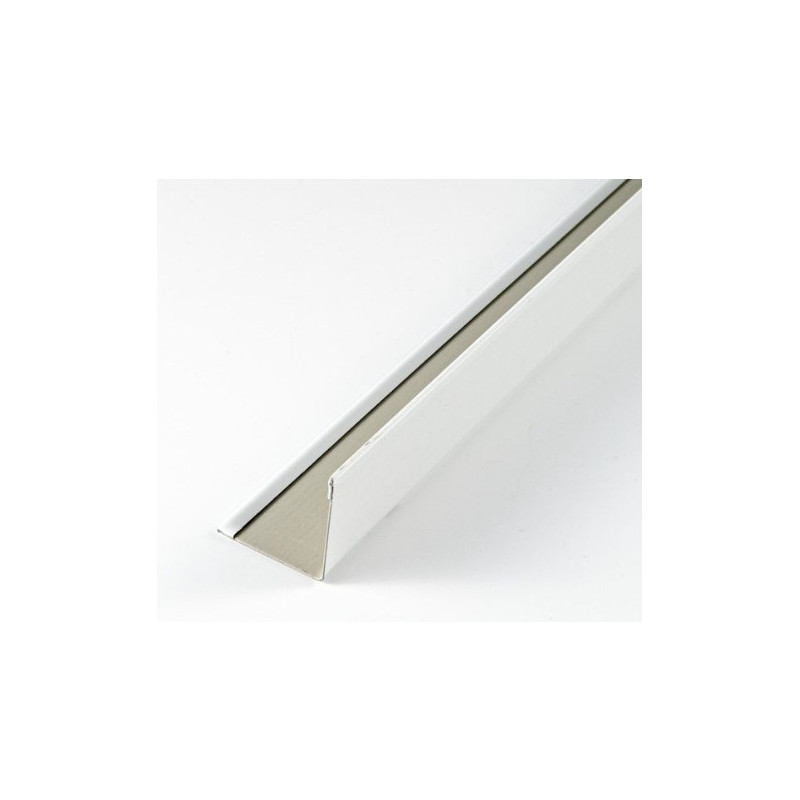

Intragrid L24 Edge profile 300 cm

Yes, with some DIY experience and the right tools, it's definitely possible to install a suspended ceiling yourself.

You will need:

• Ceiling tiles
• T-profiles (T24 or T15)
• Quick hangers (length = structural ceiling height minus desired height)
• Spirit level or laser
• Tools:
  • Measuring tape
  • Pliers
  • Hammer
  • Drill
  • Good cutting shears (left or right)

• Scaffold or ladder
• Fasteners suitable for your ceiling surface

If you encounter any difficulties – don’t hesitate to contact us.

The difference lies in the width of the profiles: T15 is narrower (15 mm) and looks sleeker, while T24 is wider (24 mm) and is more commonly used for standard applications.

Usually, L24 edge profiles are used with T24 ceiling profiles, and L19 profiles with T15 ceilings.

If you are unsure which edge profile to choose, go for the L19 profile, which has a standard 24mm side and a 19mm side, giving you the option to decide.

Measure the surface area of the space (length x width). Order a bit extra to account for cutting loss and spare material (usually 5–10%).
Once you know what you need, you can easily click everything together in the webshop.

If in doubt, you can also use our OFFLINE configurator (xls), which is available for free.

Or use our even more convenient ONLINE ceiling configurator, where you can add everything to your cart with just one click.

OFFLINE:

DOWNLOAD THE OFFLINE CONFIGURATOR

ONLINE:

ONLINE CONFIGURATOR

Yes, a suspended ceiling is ideal for integrating lighting and ventilation.

There are special recessed fixtures that fit perfectly into the ceiling grids, as well as ventilation grilles or speakers.

Thanks to the modular structure of the ceiling, adjustments and expansions are also easy to make.

We offer a limited range of lighting fixtures for this purpose.

Depending on the size of the room and your experience, you can usually install a 20–30 m² room in one day.
